XTAR 18650-350PCM 3500mAh Li-ION

Producer: XTAR
Product code: 09232
EAN: 6952918340690
Availability: available
Full specification
10,58 € 9,38 € -11%
Price net: 7,63 €
Delivery from: 2,71 €
Shipping within 24 hours
pcs Add to cart
Lowest price from last 30 days: 44,91 €
Zapytaj o produkt
Description

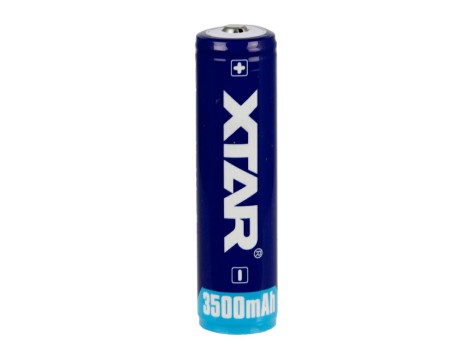

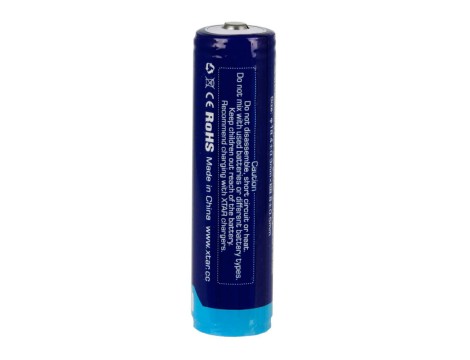

XTAR 18650-350PCM 3500mAh Li-ION 3.7V Protected 10A.

XTAR 18650 3500mAh battery with PCM protection, against discharge, overcharge, overload and short circuit. With a voltage of 3.7V. The battery is made with lithium-ion technology and built on the original Panasonic - Sanyo cell. Provides higher energy density. Specially designed for flashlights.
  • Built-in PCM protection, prevents voltages below 2.5V and above 4.25V.
  • Innovative design, providing impact resistance
  • Low internal resistance, high energy efficiency
  • Stable output voltage
  • Environmentally friendly
  • Protected against: discharge, overcharge, overload and short circuit
  • Duty cycles, up to more than 500 times
  • Features "high plus"

Technical specifications:

  • Manufacturer: XTAR
  • Model: 18650-350PCM
  • Capacity: 3500mAh
  • Technology: lithium-ion (Li-ION)
  • Voltage: 3,7V
  • Maximum recommended discharge current: 10A
  • Maximum charging voltage: 4.2 ± 0.05V
  • Minimum discharge voltage: 2.5V
  • Built-in PCM protection circuit
  • Dimensions: ∅18.6 ± 0.1mm × 69.0 ± 0.5mm
  • Net weight: 49g

Review of the battery pack, available here.
Data sheet
Transport certificate UN38.3

    CE certificate of compliance with the electromagnetic directive EMC

    To ensure the safe transport of potentially hazardous substances, all batteries must have a so-called: Material Safety Data Sheet (MSDS). The batteries available in our offer meet these standards and have MSDS cards.

    MSDS Material Safety Data Sheet.

    By purchasing a Li-ION cell, you accept the terms and conditions from para. 10 about "Guarantee of Li-ion/LiFePO4 cells".

    It is possible to make a cell with any lead and in any package configuration, details here.







    Expand
    specification
    Condition: Factory new
    Capacity: 3500mAh
    Lifespan: 500
    Nominal voltage: 3,7V
    Technology: Lithium-ion (Li-ION)
    Cell size: 18650
    Minimum discharge voltage: 2,5V
    Diameter: 18,6mm
    Maximum cut-off voltage: 4,2V
    Height: 69mm
    Width: 18,6mm
    Maximum constant discharge current: 10A
    Files to download
    XTAR 18650-PCM 3500mAh BTO.pdf
